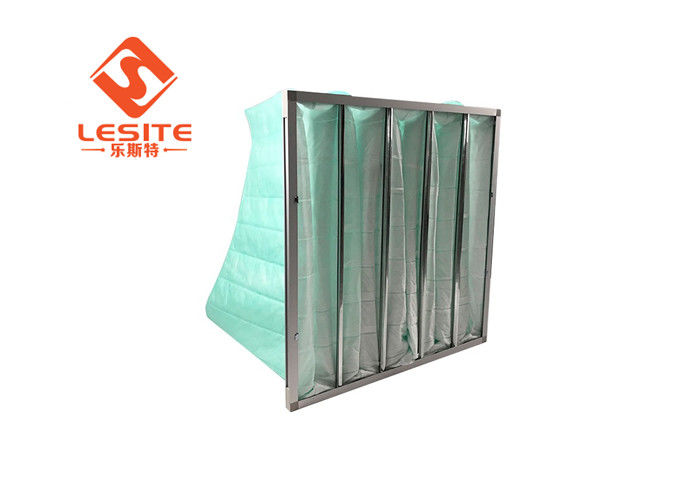

Pequeño filtro de bolso de aluminio H14 de la fibra de vidrio 21m m de la resistencia, filtro de aire del bolsillo
Datos del producto:
| Lugar de origen: | China |
| Nombre de la marca: | LESITE |
| Certificación: | CE |
| Número de modelo: | Filtro de bolso de aluminio |
Pago y Envío Términos:
| Cantidad de orden mínima: | Negocie |
|---|---|
| Precio: | Negotiate |
| Detalles de empaquetado: | embalaje de la exportación |
| Tiempo de entrega: | 5-8 días después del depósito |
| Condiciones de pago: | T/T, L/C |
| Capacidad de la fuente: | ² de 5000 m por mes |
|
Información detallada |
|||
| Eficacia: | 99,97%, H13~H14 | Max Humidity: | 100% |
|---|---|---|---|
| Tamaño: | Modificado para requisitos particulares | Material: | Fibra de vidrio |
| max.humidity: | 100% | Grueso opcional: | Aluminio/SOLDADO ENROLLADO EN EL EJÉRCITO: 21, 25, 46; Plástico: 25 |
| Capítulo: | aleación del alluminum | Uso: | Del aire de la condición filtro pre |
| Resaltar: | filtro de bolso de aluminio de 21m m,Filtro de bolso de aluminio H14,Filtro de aire del bolsillo H14 |
||
Descripción de producto
Small Resistance Aluminum Bag Filter Temperature Resistance Up To 80℃
About pocket filter
The pocket filter has the advantages of large dust holding capacity and low wind speed. as a result of this, it is considered to be the best medium filter structure.The medium efficiency of the glass fiber filter use the melt-blown superfine glass fiber filter material, its fiber fine (diameter 0.5-5 um), quantity and structure fleeciness, and it has higher efficiency, lower resistance, larger dust capacity than the similar synthetic fiber bag filter.
|
item
|
value
|
|
Medial material
|
Glass fiber/ synthetic fiber
|
|
Frame material
|
Aluminum /Galvanized steel
|
|
Filter pocket number
|
3-12
|
|
Efficiency
|
G4, M5, M6, F7, F8, F9
|
|
Max Operating Temperature
|
70˚C
|
|
Frame thickness
|
21mm/25mm
|
Efficiency: G3 / G4
Media: Synthetic fiber / Polyester fiber
Pocket type: Ultrasonic bag/Sewing bag
Frame: Extruded aluminum / GI / Plastic
Optional thickness: Aluminum / GI: 21, 25, 46; Plastic: 25
Max Temperature: 50℃
Max Humidity: 100%
Description
Pocket filter is mainly used to filtrate the dust particles with the diameter of 0.5um and above. It has the advantages of more filtering area, high dust holding capacity, low resistance, and can be washed and used repeatedly, etc.
Advantages
7 pleats/feet, 40% higher than normal product With holding frame, very strong structure Customer can replace the material very easy by themselves, the holder and frame can be recycled Washable, Can be reused when necessary
| Frame | Aluminum alloy |
| Filter medium | Synthetic fiber |
| Max. temperature | 80°C |
| Max. humidity | 80%RH |
